Available test methods

IZOD impact resistance

ASTM D256 ASTM F648

This test method covers the determination of impact resistance of plastics. The samples are notched with a 45° V-shaped notch to create a concentrated impact to ensure that the sample breaks consistently in a known, targeted area.

When tested according to D256 UHMWPE typically gives a non-break type of failure, therefore the modified method in ASTM F648 is used, this produces a greater stress concentration in the material by utilising 2 opposing razor blade notches.

EQUIPMENT

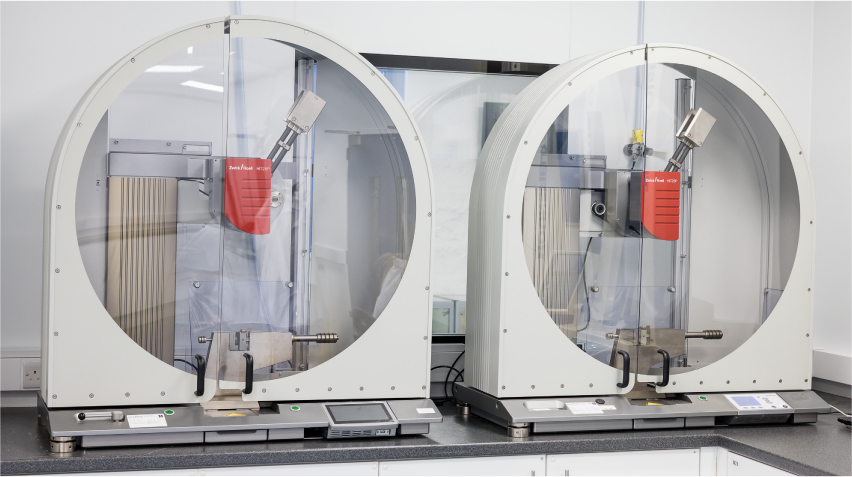

Zwick HIT25P Plus

NOMINAL SAMPLE SIZE:
63.5mm x 6.35mm x 12.7mm
